£4.50 Inc Vat.

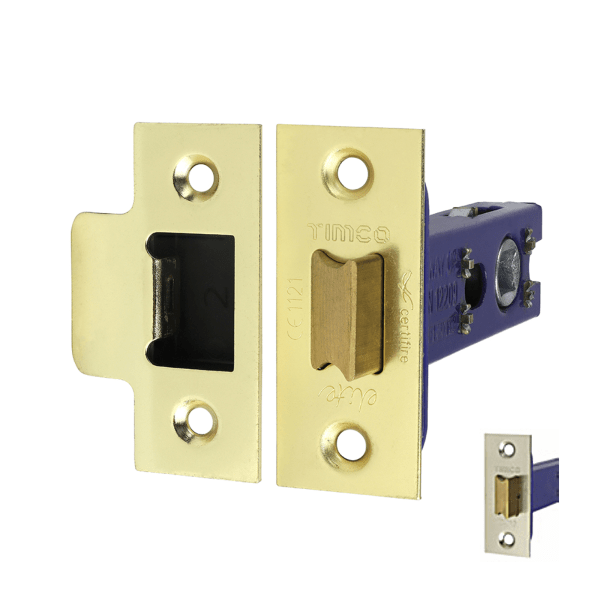

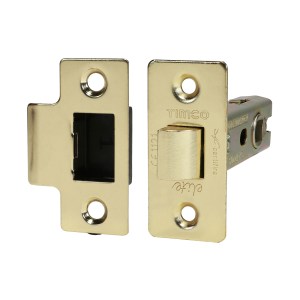

A heavy duty architectural pattern tubular latch for use in high use domestic and commercial applications. The latch features a heavy duty spring mechanism and be used with sprung and unsprung door handles.
• Suitable for 30 & 60 minute fire doors
• Easily reversible by turning the live latch/bolt, suitable for both left and right hand operation
• Fixings for electro brass & satin nickel furniture
• Use with sprung or unsprung furniture
• Bolt through
• Complete with dust box and fixing screws
9 in stock
| Weight | 0.19 kg |
|---|---|
| Dimensions | 140 × 80 × 30 mm |
| Finish | Supplied with interchangeable Electro Brass and Satin Nickel face plates |
| Corrosion Rating (1-5) | 1 – Clean, dry & low humidity environments |
| Included Items | 4 x 25mm CSK Screws (4pcs), Dust Box |
| Backset | 57mm |
| Keep Size | 65 x 25mm |
| Faceplate Size | 60 x 25mm |
| Faceplate Type | Square |
| Lock Case Size | 22.5 x 78 x 15mm |
| CE Standard | BS EN 12209:2003 |
| Fire Rating | 30 & 60 Minutes |
| MOQ | 1 |
| Brand | TIMCO |
