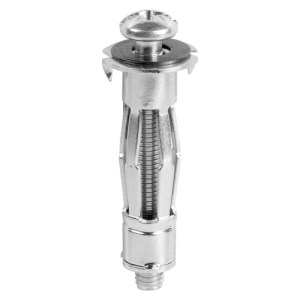

Zip-Fix Cavity Wall Fixings – Zinc

£4.61 Inc Vat.

M6

Product Code: ZIP6
Pack Type: Bag
Pack Quantity: 10 Pieces
Barcode: 5055893344033
Heavy duty cavity wall anchor for use in plasterboards, most hollow concrete blocks, cavity walls and ceilings. Pack includes both 40mm and 60mm screws for a wider variety of fixture thicknesses. NOTE: Nylon arms are for installation purposes only and once the fixing is in place, Zip-Fix becomes an all steel, non-flammable fixing.

• Two sizes of zinc pan head machine screws (M6 x 40 and M6 x 60) for varying fixture thicknesses
• Rapid installation, just Zip & Fix
• Please note: The nylon arms are for installation purposes only. Once removed this fixing becomes all-metal and has an improved fire resistance
• All steel, non-flammable fixing conforming to BS 7671 standard’s 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.

6970 in stock

SKU: ZIP6 Category: Brand:

Product Specifications

Total L (mm) 147
Pack Type Bag
Thread Ø (mm) M6
MFT (mm) 45
Corrosion Rating (1-5) 1 – Clean, dry & low humidity environments
Substrates Plasterboard, Block
Pack Weight (kg) 0.341
Driver Bit Size PZ3
MOQ 1
Pack Dimensions L x W x H (mm) 250 x 150 x 40
Finish Zinc
Pack Qty 10
Material Carbon Steel
Pallet Qty (pcs) 12600
MOQ Increment 1
Packs per Pallet 1260
Approval BS 7671:2018
Thread Type Metric
Included Items M6 x 40 Screws (Qty 10)
M6 x 60 Screws (Qty 10)
Packs per Carton 42
Screw Size (mm) M6 x 40 & M6 x 60
Fixture Hole Size Ø (mm) 7
Brand TIMCO
Feature 2 Rapid installation, just Zip & Fix
Feature 4 All steel, non-flammable fixing conforming to BS 7671 standard’s 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Feature 3 Please note: The nylon arms are for installation purposes only. Once removed this fixing becomes all-metal and has an improved fire resistance

TECHNICAL DATA

Concrete ≥25N/mm2
Drill Hole Ø (mm) 13
Rec. Tensile Load (kN) 0.60
Max. Rec. Load (kg) 60
Max. Rec. Shear Load (kg)
Plasterboard 12.5mm
Rec. Tensile Load (kN) 0.30
Drill Hole Ø (mm) 13
Max. Rec. Load (kg) 30
Max. Rec. Shear Load (kg) 43
Dense Board 15mm
Rec. Tensile Load (kN) 0.56
Max. Rec. Load (kg) 56
Drill Hole Ø (mm) 13
Max. Rec. Shear Load (kg) 85
Double Board 25mm
Rec. Tensile Load (kN) 047
Max. Rec. Load (kg) 47
Drill Hole Ø (mm) 13
Max. Rec. Shear Load (kg) 93

Additional information

Weight 0.341 kg
